PLANT TRAILER WITH FOLD OVER RAMPS

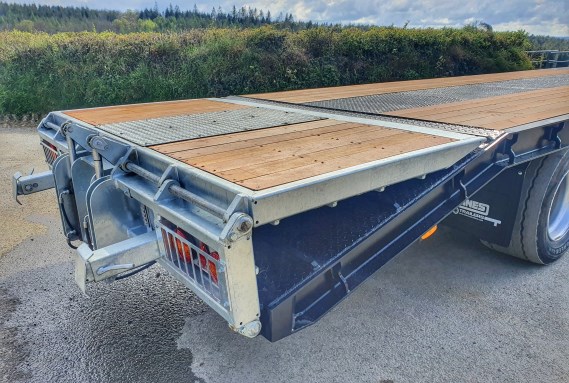

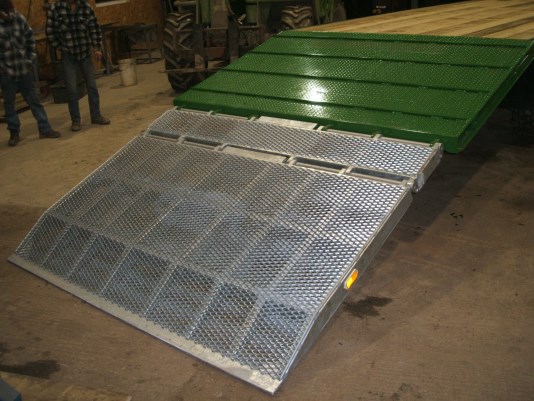

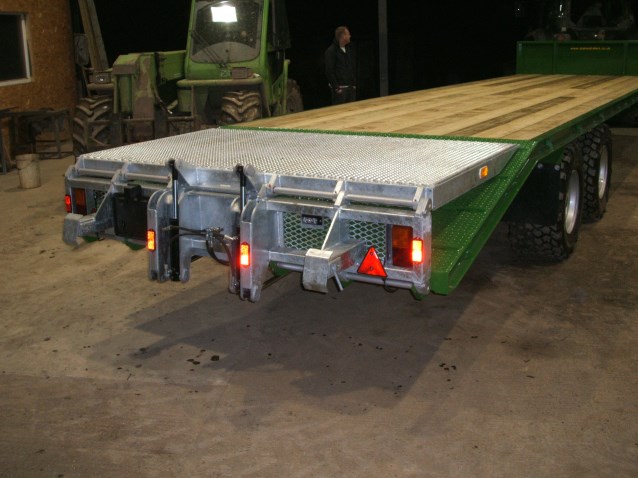

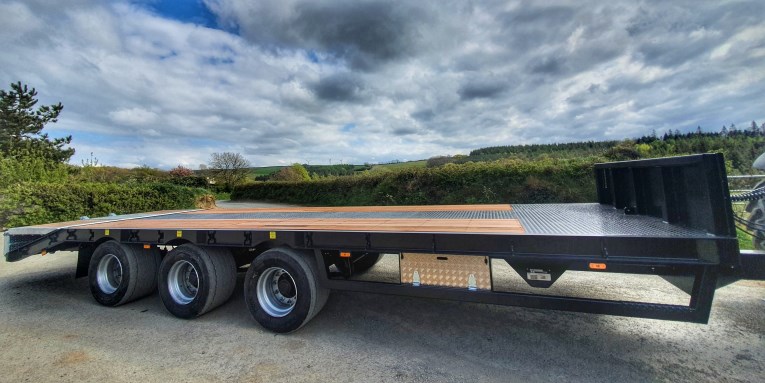

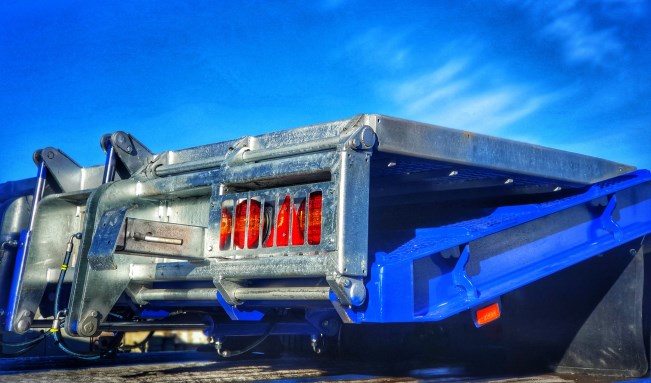

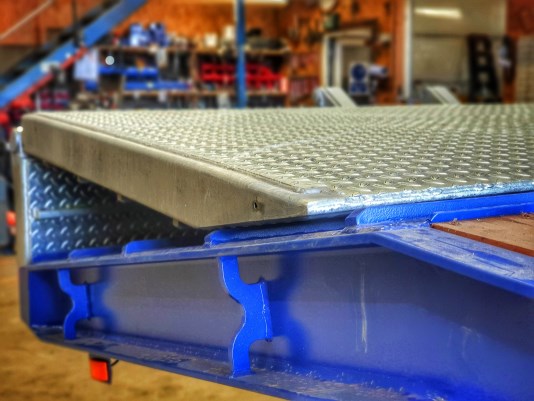

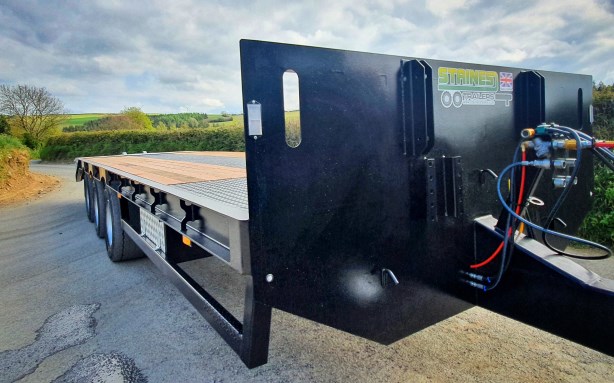

Our Staines fold over ramp Plant trailer is manufactured using a heavy duty chassis and a sturdy drawbar with 38mm treated timber floor as standard. This dual purpose ramp allows you to track up various types of machinery due to the ramp being full width of the trailer, whilst also allowing you to use the ramp as a bale wedge when its folded up, extending the flat bed of your trailer by 5ft. Available in tandem and tri-axle.

Key Specs

Carrying Capacity:	22,000 kg – Tandem 32,000 kg – Tri
Floor Type:	38mm treated timber floor
Trailer Chassis:	250 x 150 x 8mm RHS
Axles:	Commercial 10 stud axles c/w 420x180mm brakes
Suspension:	Commercial parabolic mono leaf
Lighting	– Fully road legal LED lighting kit – Rear stop/tail/indicator and flashing light – Front and side marker lights – Number plate lamp and holder
Tyres:	Mini super singles 445/45 R19.5
Braking:	Hydraulic braking system
Paint:	Twin pack, high gloss polyurethane paint
Fixtures:	– Front fixed headboard – Under run bar & lockable toolboxes – 3T ring hitch – Rope hooks – Rear wheel mudflaps – Ratchet commercial parking brake – Parallel flanged channel side rails
