TANDEM-AXLE HYDRAULIC BEAVERTAIL PLANT TRAILER

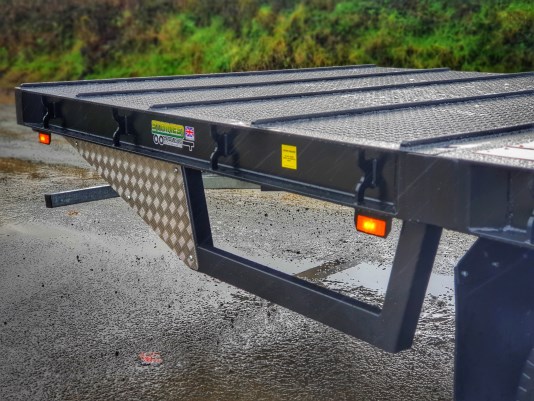

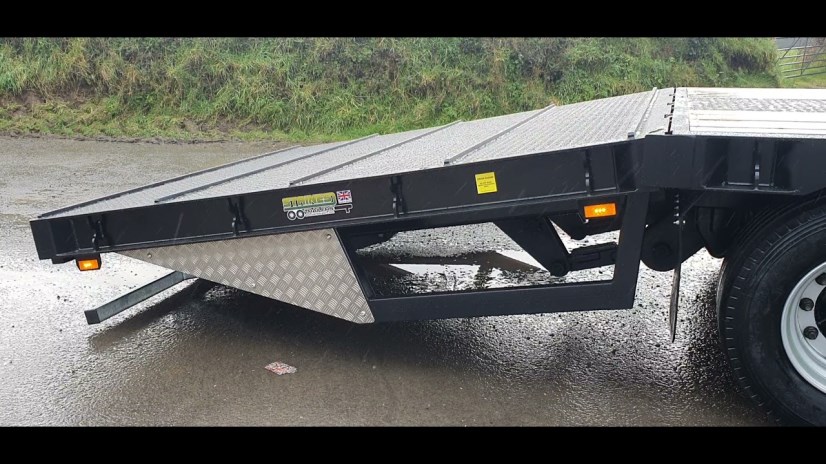

Our Staines Tandem-axle hydraulic beaver tail Plant Trailers are manufactured using a heavy duty chassis, RHS cross rails to offer full support to the siderails and a sturdy drawbar. Additional ramps are not required as our 9ft section is lowered to the floor at a 20 degree angle by hydraulic rams. This allows the trailer to accommodate any track width of machine. Our beavertail has a lifting capability of approximately 6 ton, which gives you use of the full length of the flat bed. Our new locking system comes fitted with over centre gravity lock, which creates an automatically safe locking system.

Key Specs

Carrying Capacity:	22,000 kg

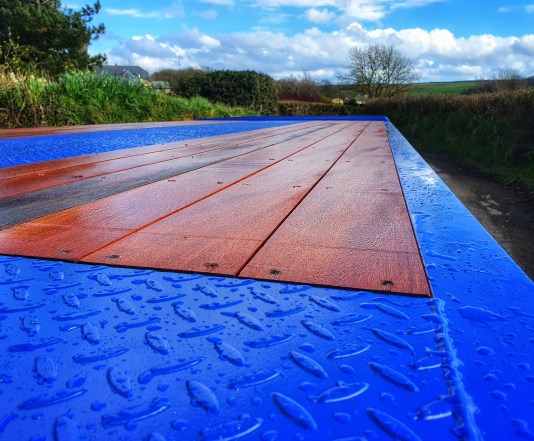

Floor Type:	38mm treated timber floor
Trailer Chassis:	250 x 150 x 8mm RHS
Axles:	Commercial 10 stud axles c/w 420x180mm brakes
Suspension:	Commercial parabolic mono leaf

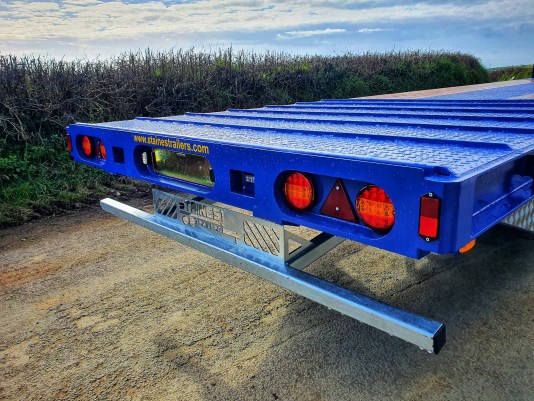

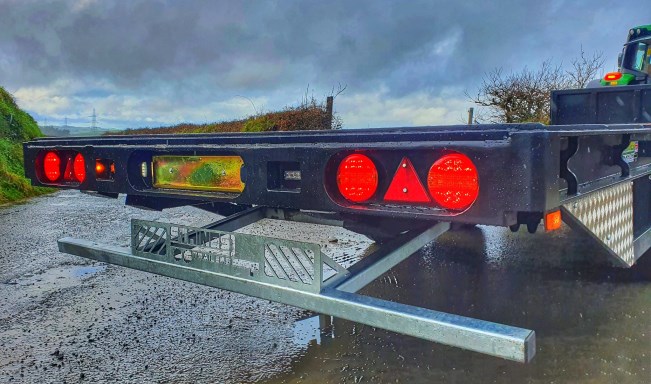

Lighting	– Fully road legal LED lighting kit – Rear stop/tail/indicator and flashing light – Front and side marker lights – Number plate lamp and holder
Tyres:	Mini super singles 445/45 R19.5
Braking:	Hydraulic braking system
Paint:	Twin pack, high gloss polyurethane paint
Fixtures:	– Front fixed headboard – Under run bar & lockable toolboxes – 3T ring hitch – Rope hooks – Rear wheel mudflaps – Ratchet commercial parking brake – Parallel flanged channel side rails
