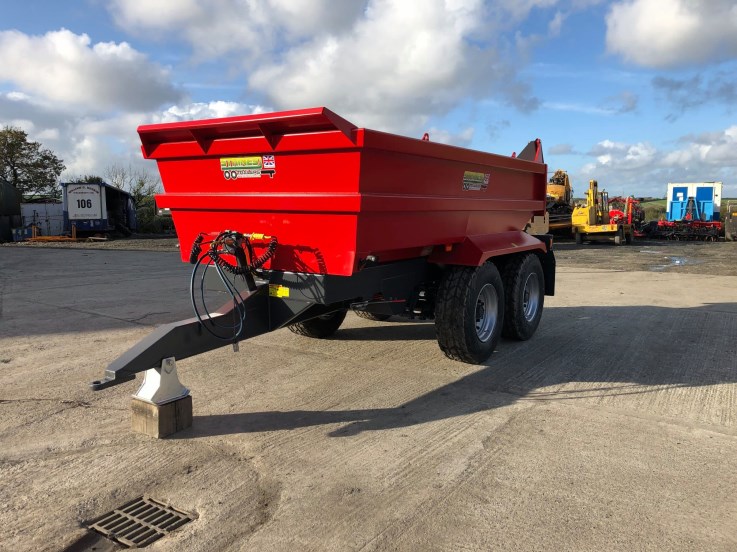

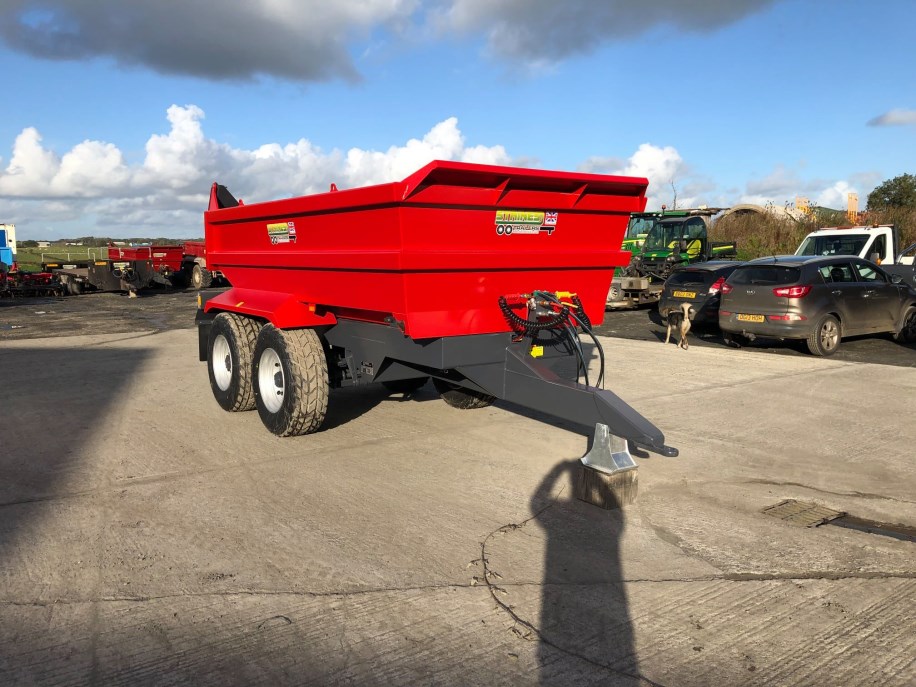

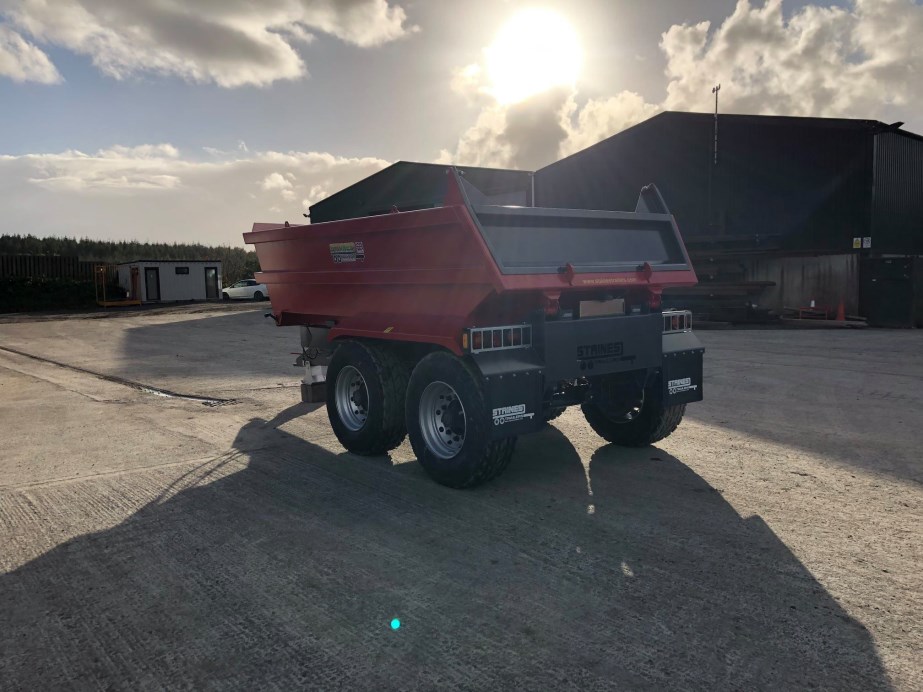

SITE DUMPER

Our Staines Standard Site Dumper features a heavy duty RHS chassis, mounted on commercial 10 stud axles and a tandem suspension. To help protect from wear and tear our Staines dumpers are built with 5mm sides and 8mm floor sheets, for extra durability check out our Hardox Tube Dumper. An extensive tipping angle is achieved via our 3 stage hydraulic cylinders, making them the perfect tipping dumper.

Key Specs

Carrying Capacity	16,000 kg
Cubic Capacity	7m2
Trailer Chassis	250 x 150 x 8mm RHS

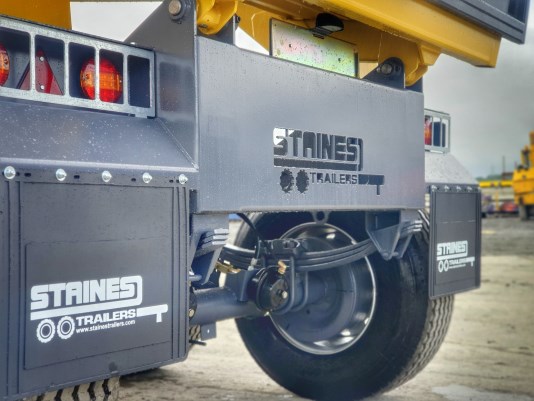

Suspension	Commercial parabolic monoleaf
Axles	Commercial 10 stud axles c/w 420x180mm brakes
Lighting	-Fully road legal LED lighting kit -Rear stop/tail/indicator -Front and side marker lights -Number plate lamp and holder
Tyres	Super singles 385/65 R22.5
Braking	Hydraulic braking system
Rear	Gravity operated door, with auto locking catch

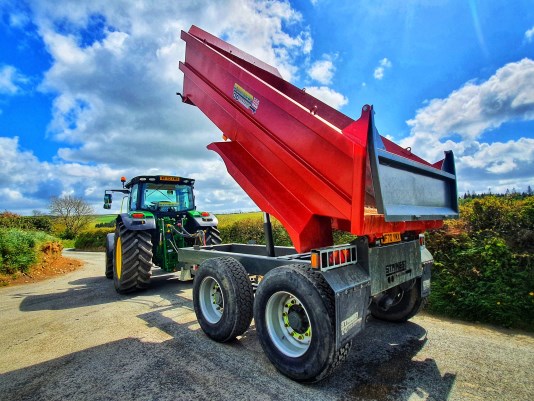

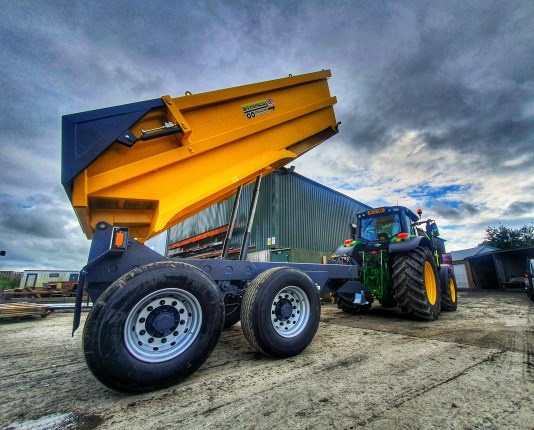

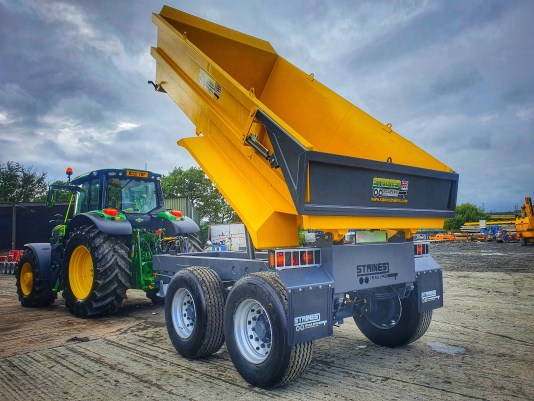

Tipping	Twin 3 stage tipping rams
Paint	Twin pack, high gloss polyurethane paint
Fixtures	– Scow back – Mudguard and mudflaps – Rope hooks – Ratchet commercial parking brake – Recessed rear light with protective case

Contact Staines Trailers

Contact Staines Trailers to discuss your requirements, our team is here to help.
