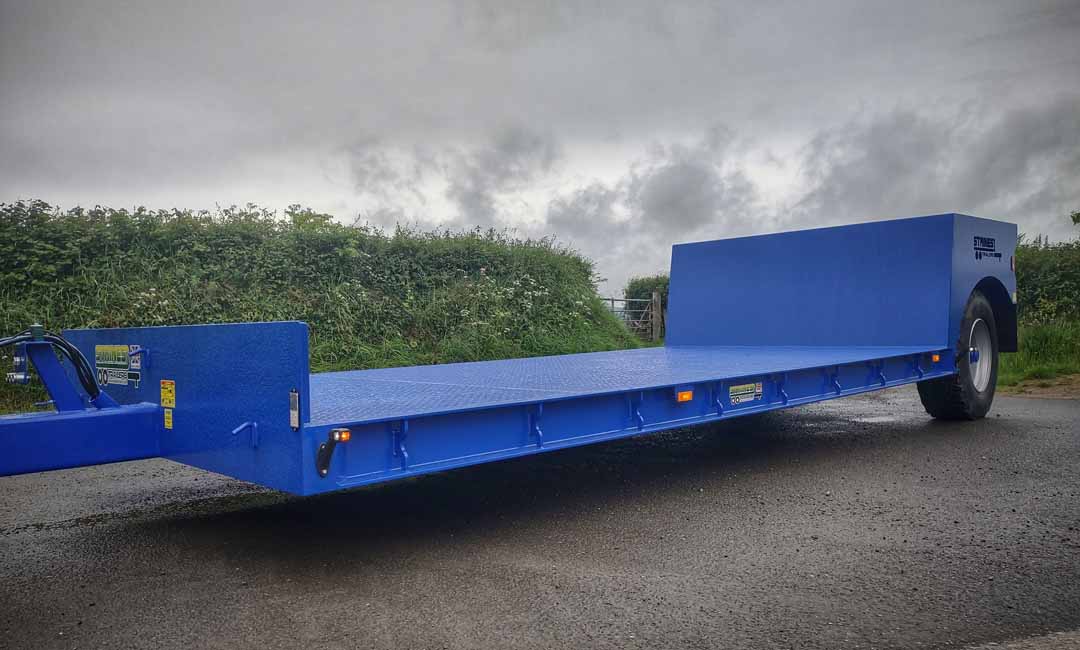

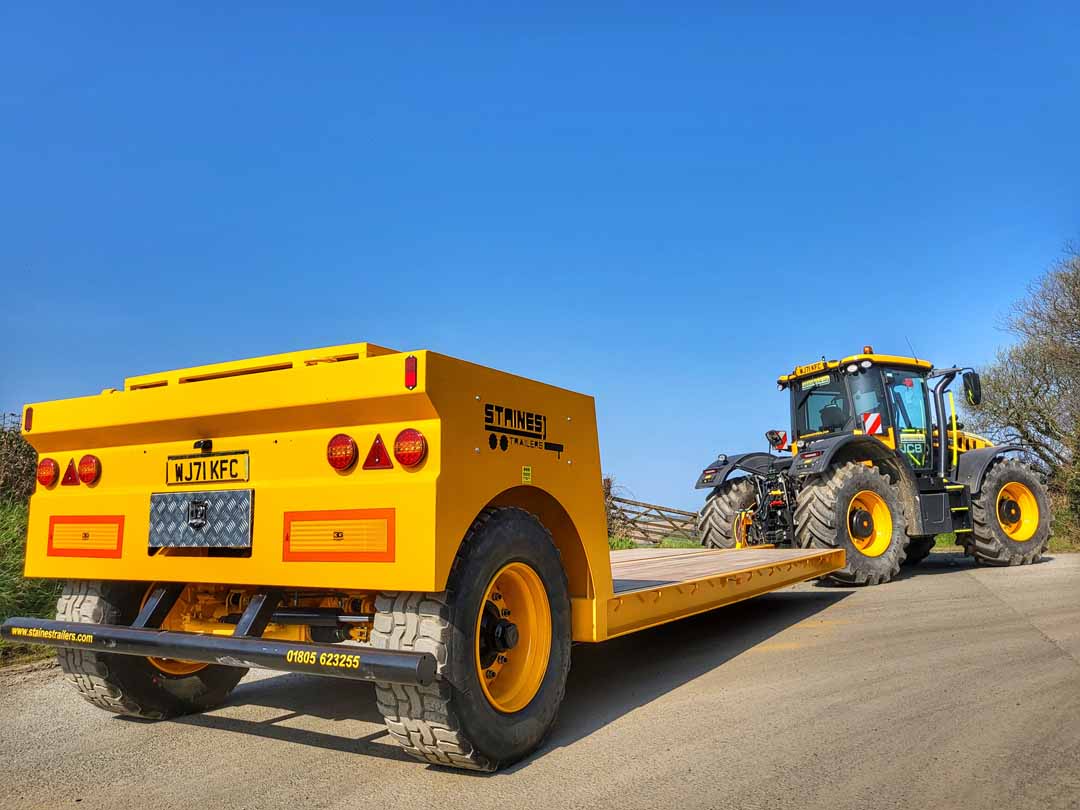

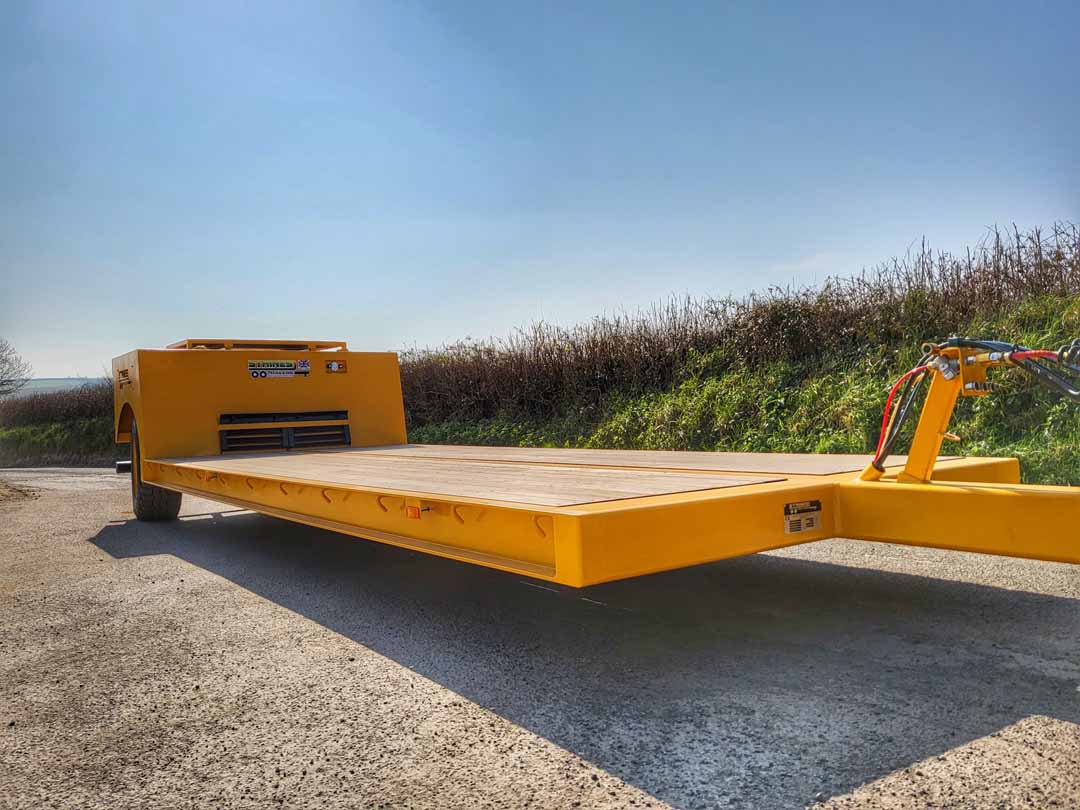

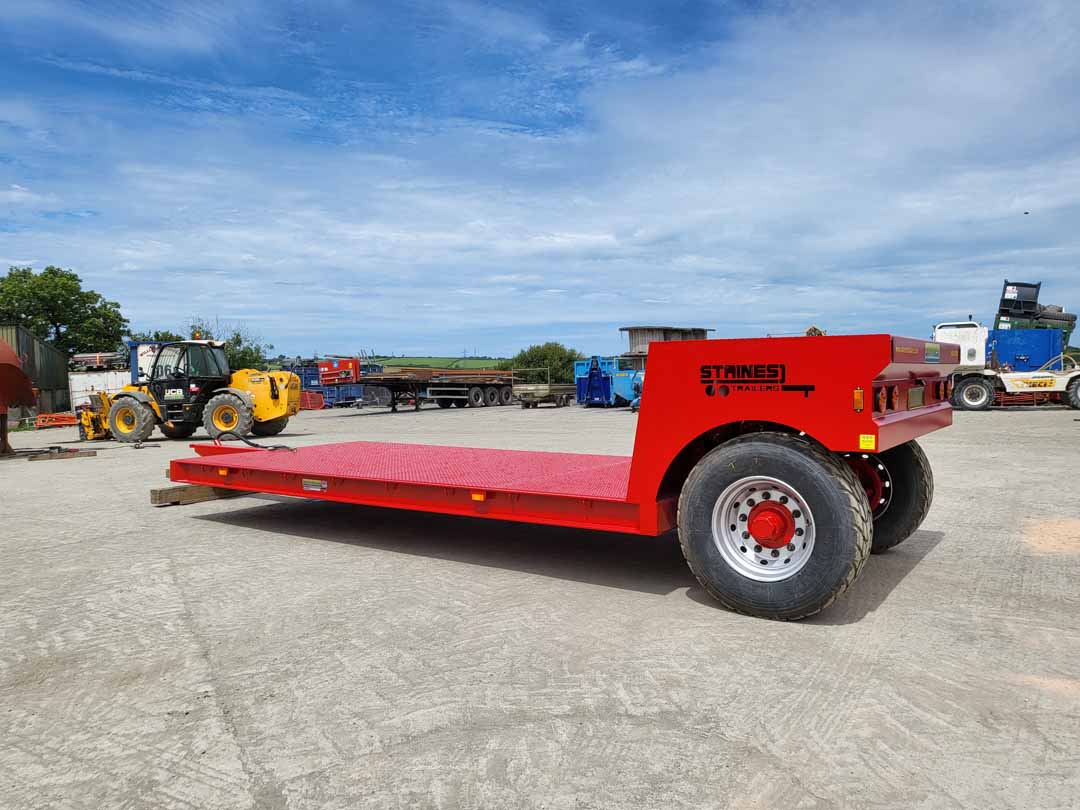

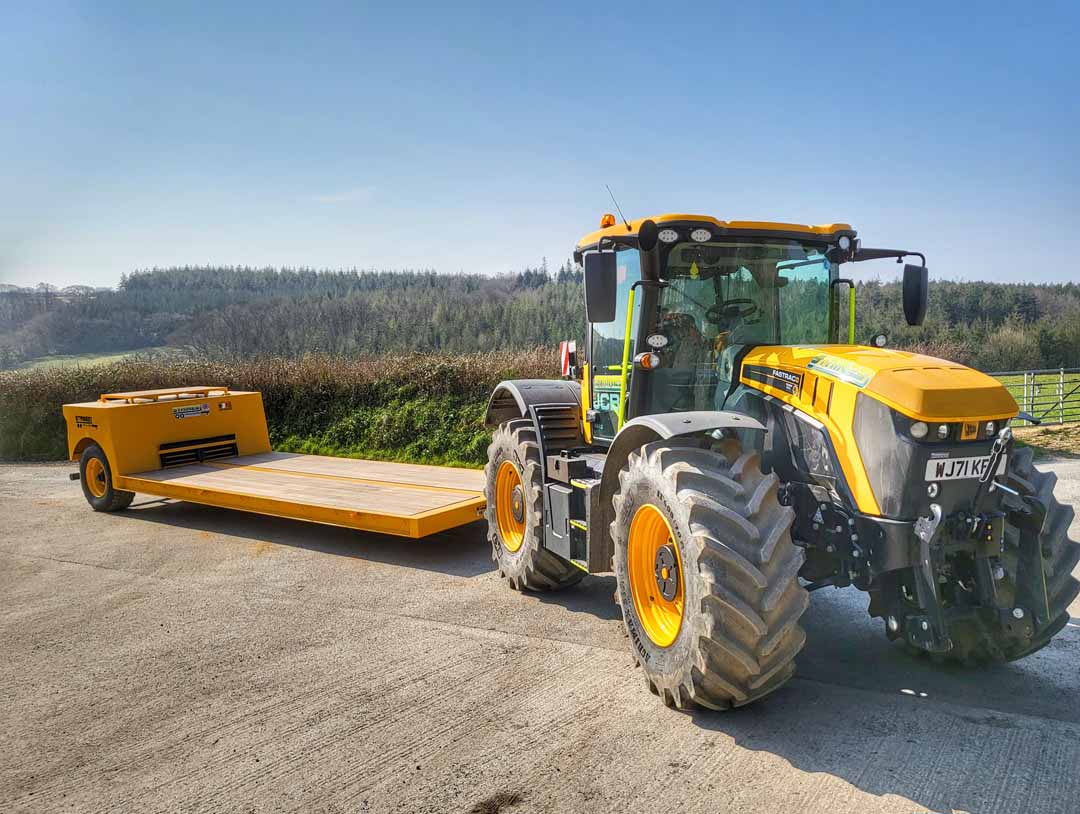

DROP DOWN LOW LOADER TRAILER

Our Staines single axle drop deck low loader trailer is designed so the bed of the trailer lowers to the ground enabling an easy and quick loading of implements, small crawlers and small diggers with a max 8t load weight. The design of this trailer means you can load your equipment from the front or side, with optional ramps to aid in loading low ground clearance vehicles. Raised and lowered using two tipping cylinders at the rear, this allows the trailer to be lowered 2ft to be flush with the floor, while in park mode.

Key Specs

Carrying Capacity

8 tonne load weight

Floor Type

38mm treated timber floor

Trailer Chassis

200 x 200 x 8mm SHS with 200 x 75 PFC

Axles

Commercial 10 stud axles c/w 420x180mm brakes

Suspension

Commercial parabolic mono leaf

Braking

Hydraulic braking system

Tyres

Super singles 385/65 R22.5

Braking

Hydraulic braking system

Paint

Twin pack, high gloss polyurethane paint

Lighting & Fixtures

– Fully road legal LED lighting kit
– Rear stop/tail/indicator and flashing light
– Front and side marker lights
– Number plate lamp and holder
– Rope hooks
